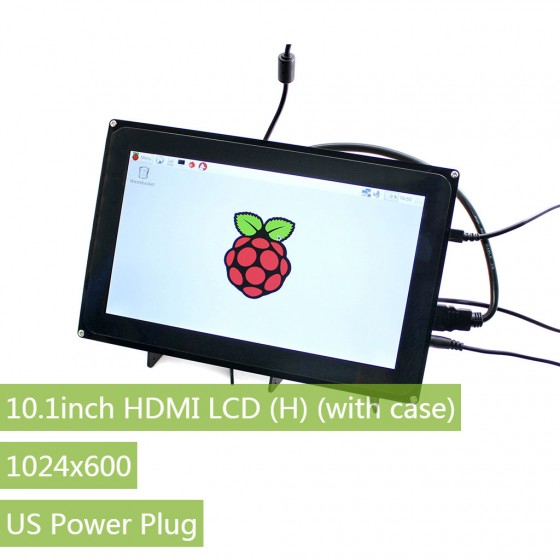

10.1inch HDMI LCD (H) (with case), 1024x600

SKU:11502
Part No.:10.1inch HDMI LCD (H) (with case)
Brand:Waveshare

$121.99 Qty:

PriceQuantity
1~9
$120.7910~49
$120.1950~99
$119.95100+

Related Products:

10.1inch HDMI LCD (H) (with case), 1024x600

10.1inch HDMI LCD (B) (with case), 1280×800, IPS

Details

1024×600, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Multi Interfaces

The LCD and Control Board

1024×600 high resolution
Capacitive touch control
When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
When work as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free
Supports BB Black, comes with Angstrom image
Multi video input interfaces: HDMI, VGA, and AV(CVBS)
Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
Firmware is upgradable to support more new features (continually updated)

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case

Material : high quality clear Acrylic
Comes with bottom holder, 45° tilt angle
Features mounting holes for Raspberry Pi 3B/2B/B+/A+/B, and BB Black

Photos

Note: Raspberry Pi in the photos is NOT included.

External Dimension

Development Resources

Wiki : www.waveshare.com/wiki/10.1inch_HDMI_LCD_(H)_(with_case)

Selection Guide

PartNumber	Display				Touch				Audio		Device Support
PartNumber	Resolu-tion	Display Port	Display Panel	View Angle	Touch Type	Touch Port	Toughened Glass Panel	Optical Bonding	Spe- aker	Signal Output	Pi	JETSON NANO	PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.2inch RPi LCD (B)	320×240	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (B)	480×320	SPI	IPS	160°	Resistive	SPI	×	×	×	×	√	×	×
3.5inch RPi LCD (C)	480×320	High-Speed SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
4inch RPi LCD (A)	480×320	SPI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD	480×640	DPI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.5inch DPI LCD	640×480	DPI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
4inch DPI LCD (C)	720×720	DPI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
5inch DPI LCD	800×480	DPI	IPS	160°	–	–	×	×	×	×	√	×	×
7inch DPI LCD	1024×600	DPI	IPS	170°	–	–	×	×	×	×	√	×	×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only.
2.8inch DSI LCD	480×640	DSI	IPS	160°	Capacitive	I2C	√	√	×	×	√	×	×
3.4inch DSI LCD (C)	800×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4inch DSI LCD	480×800	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4inch DSI LCD (C)	720×720	DSI	IPS	170°	Capacitive	I2C	√	√	×	×	√	×	×
4.3inch DSI LCD	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI LCD (with case)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
4.3inch DSI QLED	800×480	DSI	IPS(QLED)	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (B)	800×480	DSI	IPS	160°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (C)	1024×600	DSI	IPS	178°	Capacitive	I2C	√	×	×	×	√	×	×
5inch DSI LCD (D)	720×1280	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
6.25inch DSI LCD	720×1560	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with case A)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (with cam and case)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (B) (with case A)	800×480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (C) (with case A)	1024×600	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
7inch DSI LCD (E)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
7.9inch DSI LCD	400×1280	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (with cam)	800×480	DSI	TFT	–	Capacitive	I2C	√	×	×	×	√	×	×
8inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
8.8inch DSI LCD	480×1920	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
10.1inch DSI LCD (C)	1280×800	DSI	IPS	178°	Capacitive	I2C	√	√	×	×	√	×	×
11.9inch DSI LCD	320×1480	DSI	IPS	170°	Capacitive	I2C	√	×	×	×	√	×	×
13.3inch DSI LCD	1920×1080	DSI	IPS	178°	Capacitive	I2C	√	×	×	×	√	×	×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
2.8inch HDMI LCD (H)	480×640	HDMI	IPS	160°	Capacitive	USB-C / I2C	√	√	×	×	√	√	√
3.2inch HDMI LCD (H)	480×800	HDMI	IPS	160°	×	×	×	×	×	×	√	√	Display ONLY
3.4inch 800x800 LCD	800x800	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
3.5inch HDMI LCD	480×320	HDMI	IPS	160°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
3.5inch 480x800 LCD	480×800	HDMI	IPS	170°	Capacitive	USB-C	×	×	×	×	√	√	√
4inch 720x720 LCD	720x720	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
4inch HDMI LCD	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
4inch HDMI LCD (C)	720×720	HDMI	IPS	170°	Capacitive	USB-C / I2C	√	√	×	√	√	√	√
4inch HDMI LCD (H)	480×800	HDMI	IPS	170°	Resistive	SPI	×	×	×	√	√	×	Display ONLY
4.3inch HDMI LCD (B)	800×480	HDMI	IPS	160°	Capacitive	USB	×	×	×	√	√	√	√
5DP-CAPLCD-H	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	×	×	√	√	√	√
5DP-CAPLCD-B	1024×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
5DP-CAPLCD-G	1024×600	HDMI	IPS	178°	Resistive	Type-C	√	×	×	√	√	√	√
5inch HDMI LCD	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (with bicolor case)	800×480	HDMI	TFT	–	Resistive	SPI	×	×	×	×	√	×	×
5inch HDMI LCD (B)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Resistive	USB	×	×	×	×	√	×	√
5inch HDMI LCD (G)	800×480	HDMI/VGA	TFT	–	Resistive	USB	×	×	×	√	√	×	√
5inch HDMI LCD (H)	800×480	HDMI/VGA	TFT	–	Capacitive	USB	√	×	×	√	√	√	√
5inch HDMI LCD (H) V4	800×480	HDMI	TFT	–	Capacitive	USB	√	×	×	×	√	×	√
5inch HDMI AMOLED	960×544	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5inch 1080x1080 LCD	1080×1080	HDMI	IPS	160°	Capacitive	Type-C	√	√	√	√	√	√	√
5inch 720x1280 LCD	720×1280	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
5.5inch HDMI AMOLED	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	√	√
5.5inch HDMI AMOLED (with case A)	1080×1920	HDMI	AMOLED	170°	Capacitive	USB	√	√	×	√	√	×	×
5.5inch 1440x2560 LCD	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	√
5.5inch 1440x2560 LCD (with case A)	1440×2560	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	×	×
6.25inch 720x1560 LCD	720×1560	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	×	√	√	√
7EP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7EP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
7inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
7inch HDMI LCD (B)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (B) (with bicolor case)	800×480	HDMI	TFT	–	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (C) (with bicolor case)	1024×600	HDMI	IPS	170°	Capacitive	USB	×	×	×	×	√	×	√
7inch HDMI LCD (H)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	×	×	×	√	√	√	√
7inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7HP-CAPQLED	1024×600	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch HDMI LCD	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
7.9inch Side Monitor	400×1280	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
7.9inch Touch Monitor	400×1280	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
8DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
8HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
8inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
8inch 1536x2048 LCD	1536×2048	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
8.8inch Side Monitor	480×1920	HDMI	IPS	170°	×	×	×	×	√	×	√	√	Display ONLY
9HP-CAPQLED-B	1280×720	HDMI	IPS (QLED)	178°	Capacitive	USB	√	×	×	√	√	√	√
9.3inch 1600x600 LCD	1600×600	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
9.7inch 768x1024 LCD	768×1024	HDMI	IPS	178°	Capacitive	Type-C	√	×	√	√	√	√	√
10.1inch HDMI LCD	1024×600	HDMI	IPS	170°	Resistive	SPI	×	×	×	×	√	×	Display ONLY
10.1inch HDMI LCD (B) (with case)	1280×800	HDMI	IPS	170°	Capacitive	USB	√	×	×	×	√	×	√
10.1inch HDMI LCD (E)	1024×600	HDMI	IPS	170°	Capacitive	USB	√	√	×	√	√	√	√
10.1inch HDMI LCD (G) (with case)	1920×1200	HDMI	IPS	160°	Capacitive	USB	√	√	√	√	√	√	√
10.1inch HDMI LCD (H) (with case)	1024×600	HDMI/VGA	TFT	–	Capacitive	USB	×	×	×	×	√	√	√
10.1inch HDMI LCD (F) (with case)	1024×600	HDMI/VGA	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
10.1EP-CAPLCD	1920×1200	HDMI	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.1DP-CAPLCD	1280×800	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
10.1HP-CAPQLED	1280×720	HDMI	IPS (QLED)	170°	Capacitive	USB	√	×	×	√	√	√	√
10.1HP-CAPLCD Monitor	1280×800	HDMI/Type-C	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
10.4HP-CAPQLED	1600×720	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
10.5inch HDMI AMOLED	2560×1600	HDMI	AMOLED	160°	Capacitive	USB	√	√	√	√	√	√	√
11.6inch 1768x828 LCD	1768×828	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
11.6inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	√	×	√	√	√	√
11.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
11.9inch HDMI LCD	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	×	√	√	√	√
11.9inch Side Monitor	320×1480	HDMI	IPS	170°	×	×	√	×	√	×	√	√	√
11.9inch Touch Monitor	320×1480	HDMI	IPS	170°	Capacitive	USB	√	×	√	×	√	√	√
12.3inch 1920x720 LCD	1920×720	HDMI/Type-C	IPS	178°	Capacitive	Type-C	In-Cell	×	×	√	√	√	√
12.3inch HDMI LCD	1920×720	HDMI	IPS	178°	Capacitive	USB	√	√	√	√	√	√	√
13.3inch HDMI LCD (H)	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
13.3inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch HDMI LCD (H) (with case) V2	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
13.3inch QHD AMOLED	2560×1440	HDMI/Type-C	AMOLED	178°	Capacitive	Type-C	√	√	√	√	√	√	√
14inch 2160x1440 LCD	2160×1440	HDMI/Type-C/DP	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
15.6inch FHD Monitor (C)	1920×1080	mini HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	√	√	√	√	√
14inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
15.6inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
15.6inch HDMI LCD	1920×1080	HDMI	IPS	178°	Capacitive	USB	√	×	×	√	√	√	√
15.6inch HDMI LCD (H) (with case)	1920×1080	HDMI/VGA	IPS	178°	Capacitive	USB	√	×	√	√	√	√	√
15.6inch FHD Monitor	1920×1080	HDMI/Type-C	IPS	178°	Capacitive	Type-C / USB	√	×	√	√	√	√	√
15.6HP-CAPQLED	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	USB	√	√	×	√	√	√	√
15.6inch QLED Monitor	1920×1080	HDMI	IPS(QLED)	178°	Capacitive	Type-C	√	√	√	√	√	√	√
18.5inch Dual Monitor	1920×1080	HDMI/Type-C	IPS	178°	×	×	×	×	√	√	√	√	√
18.5inch FHD LCD	1080×1920	HDMI/Type-C	IPS	178°	Capacitive	Type-C	√	√	×	√	√	√	√
21.5inch FHD LCD	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	×	√	√	√	√
21.5inch FHD Monitor	1080×1920	HDMI	IPS	170°	Capacitive	Type-C	√	√	√	×	√	√	√

Have a look :
RPi LCD Comparing
